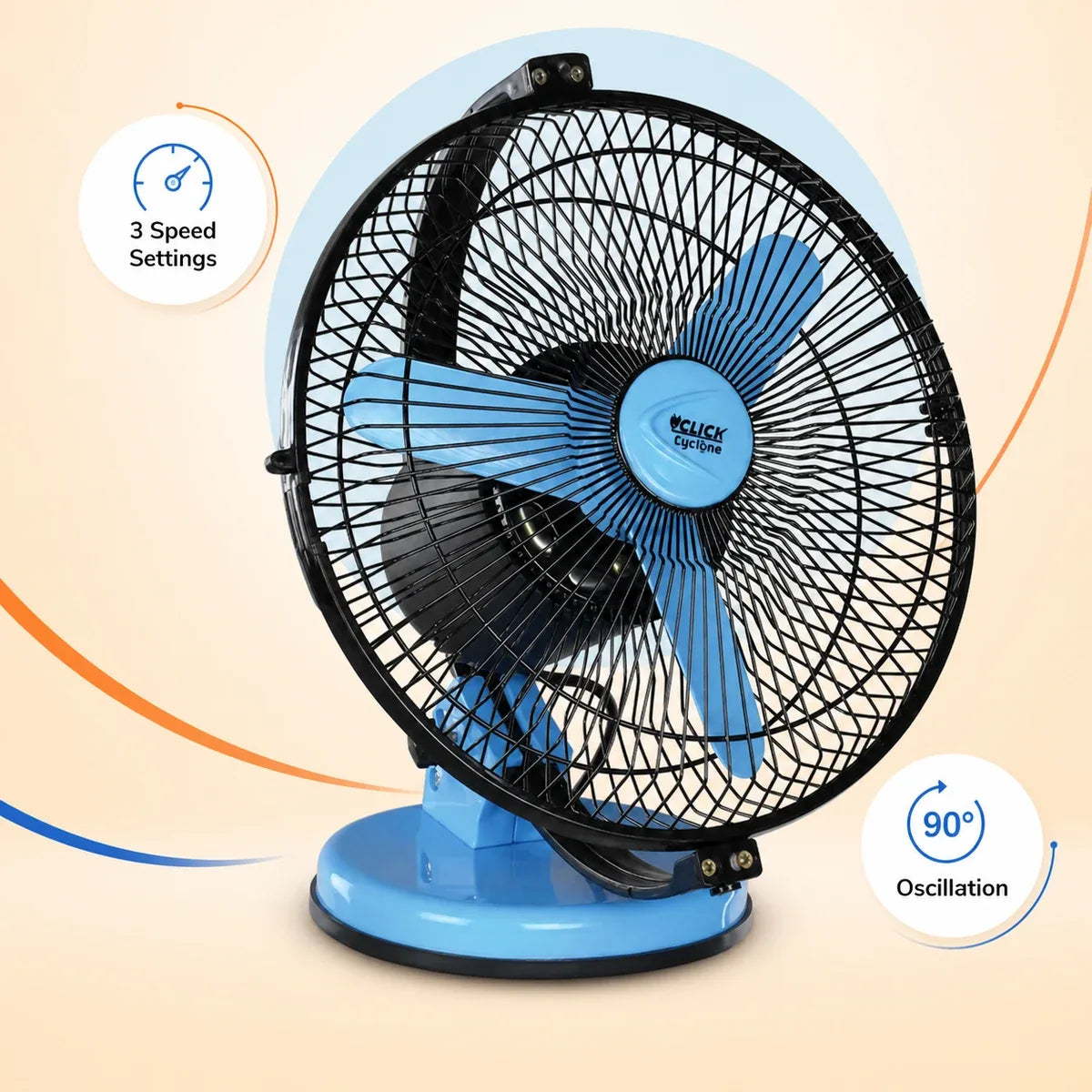

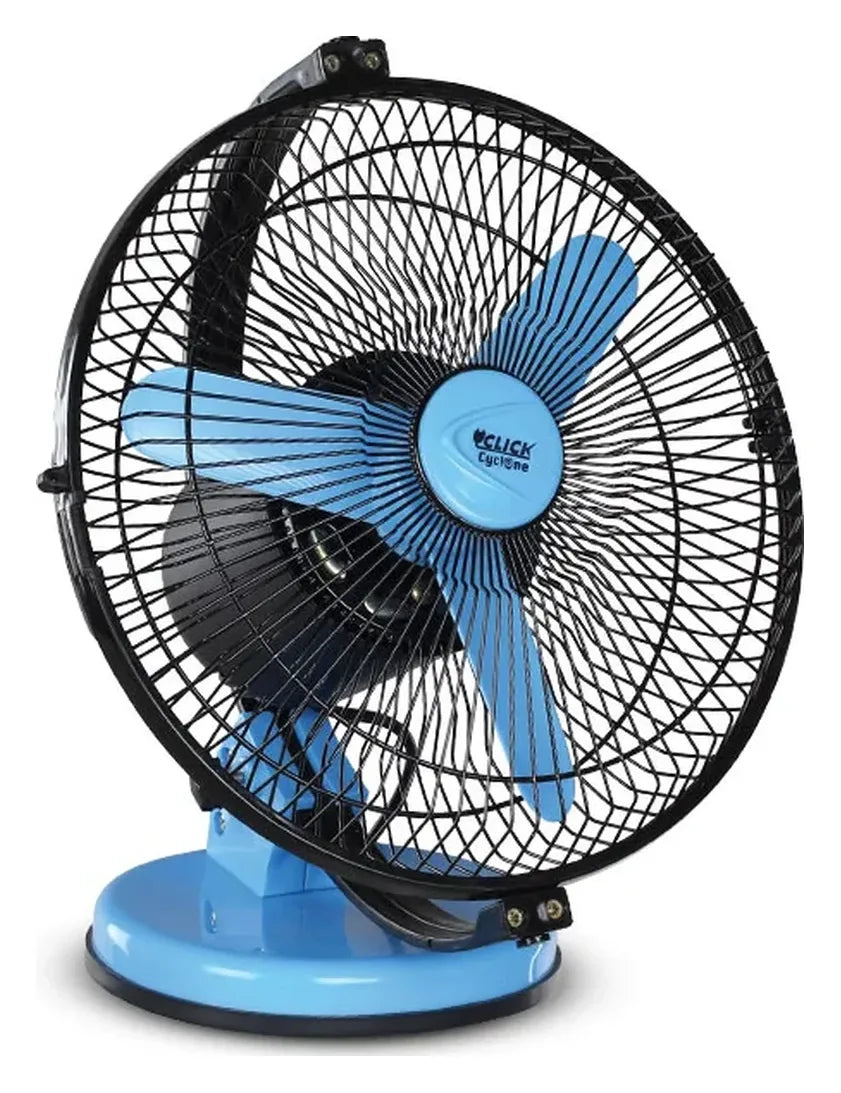

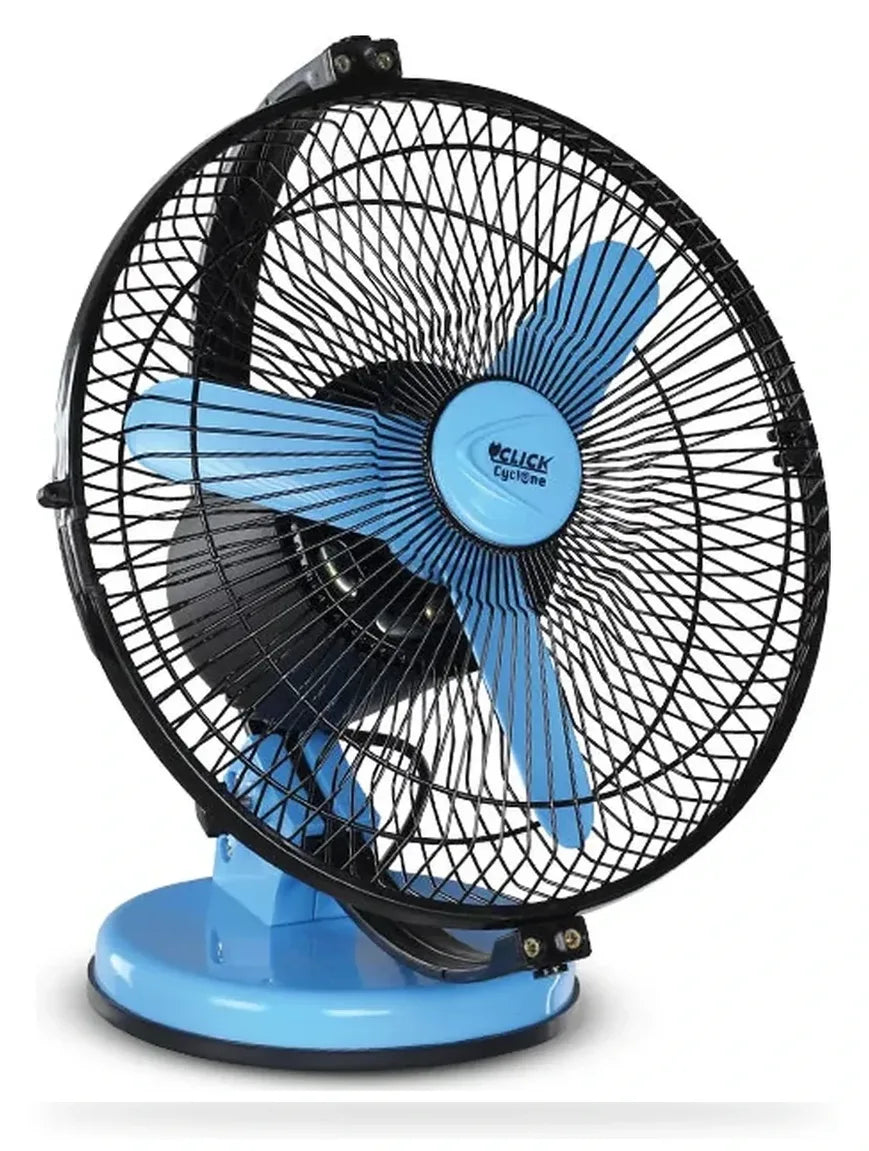

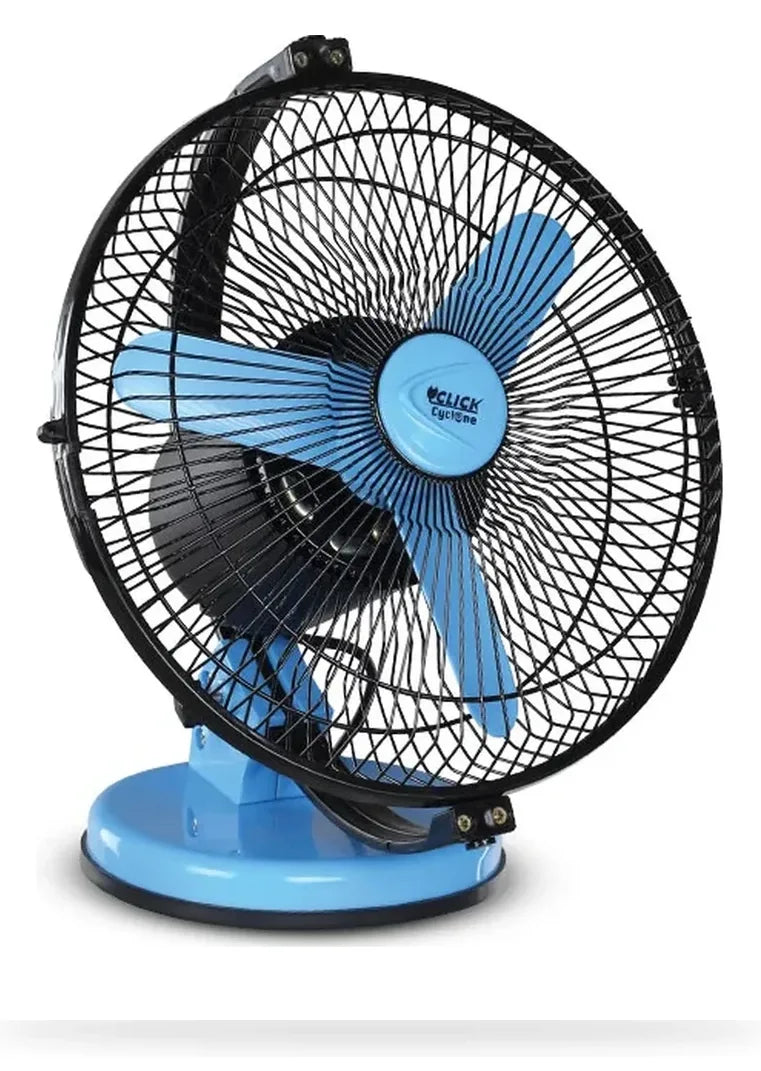

Click Cyclone Fan

Click Cyclone Fan is a 235 mm cyclone fan from CLICK — a compact unit built to push a strong stream of air into small rooms, shops, kitchens and workshop corners.

This 2800 RPM fan delivers 90 m³/min of air with a service value of 1.32 m³/min/watt. The three dimension high-speed design is what gives it a strong cooling effect despite the small 235 mm size. It draws 68 W at 220 V, 50 Hz and holds a power factor of 0.99.

The motor is a shaded pole motor with over voltage carrying capacity, so it copes with the voltage swings common on local lines. The blade is made of PP and the guard is a rust free wire guard, which keeps corrosion away in humid or kitchen air. Insulation is ‘E’ Class.

One practical advantage is mounting flexibility: the same fan can be ceiling mounted or wall mounted, so it fits rooms where floor and table space is already taken. The colour is as given in the picture.

Highlights

• Size: 235 mm
• Rated speed: 2800 R.P.M.
• Air delivery: 90 m³/min
• Service value: 1.32 m³/min/watt
• Power: 68 W at 220 V, 50 Hz
• Power factor: 0.99, ‘E’ Class insulation
• Motor type: Shaded pole
• 3 dimension high-speed fan with high cooling effect
• Blade material: PP
• Rust free wire guard
• Over voltage carrying capacity
• Can be ceiling mounted or wall mounted

Important Usage Instructions

• Fix the fan to a solid ceiling or wall point with the supplied bracket tightened fully, so a 2800 R.P.M. motor does not shake the mount.
• Run it on a 220 V, 50 Hz line and avoid sharing the socket with heavy appliances.
• Keep the wire guard in place at all times and never push fingers, cloth or a stick through the grill while the blade turns.
• Switch off and disconnect power before cleaning, then wipe the PP blade and guard with a dry cloth to keep air delivery strong.
• Do not let water spray onto the motor housing, and have any unusual noise, sparking or heating checked by a technician.

Official product as Click Cyclone Fan can be found at LM Electronics. LM Electronics Click’s Official Dealer. Click here to see all Fans.
