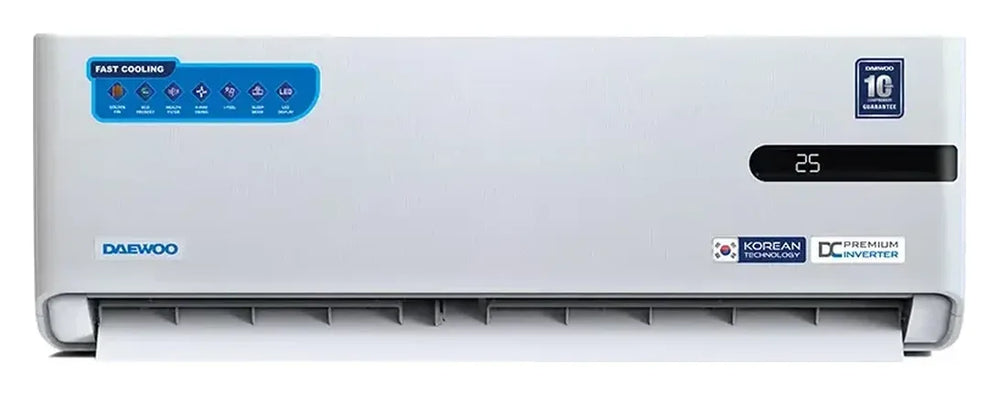

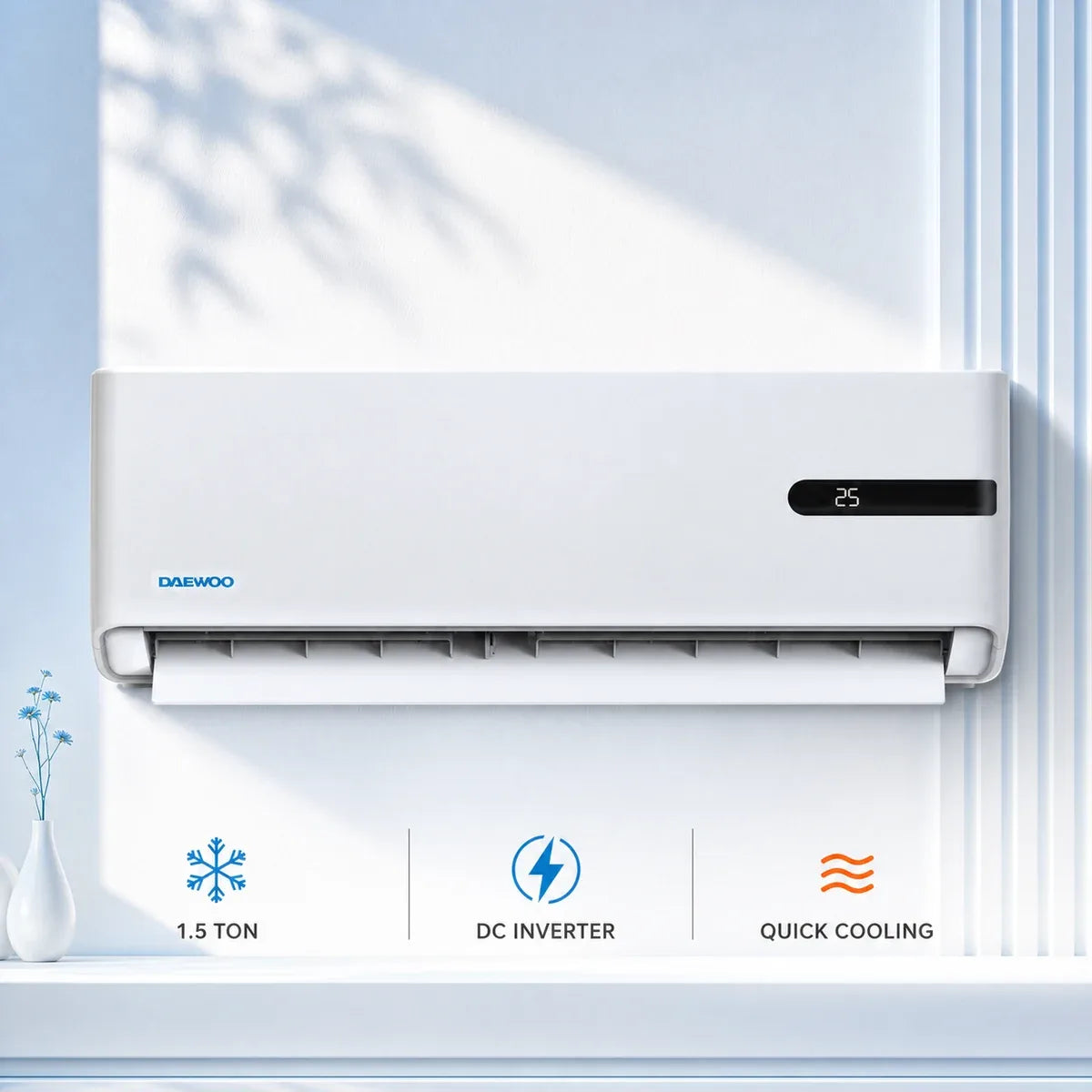

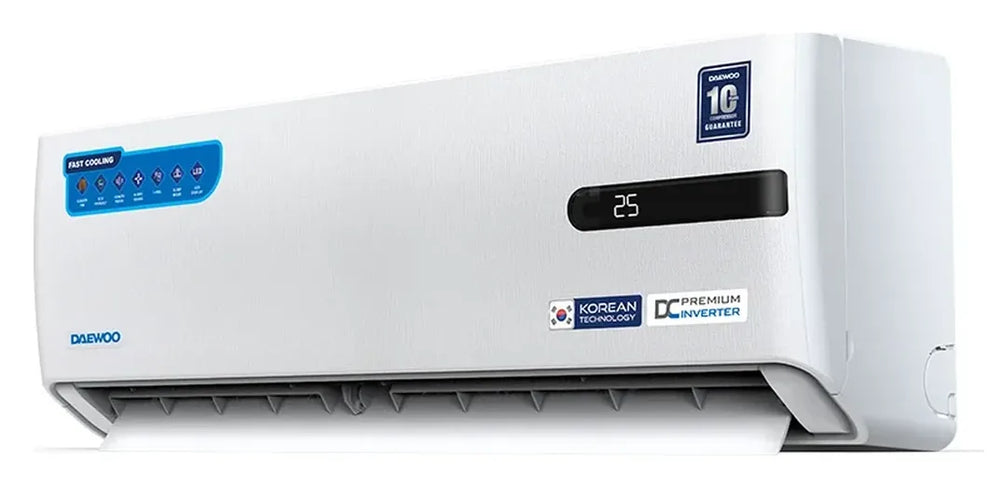

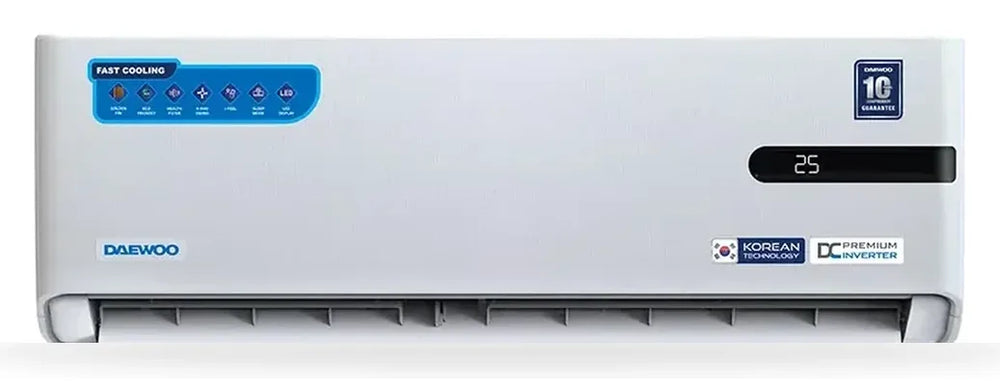

Daewoo 1.5 Ton DC Inverter Split Type AC

Daewoo 1.5 Ton DC Inverter Split Type AC (model DSB-H189B1KLHI-T) is a wall-mounted split air conditioner rated at 18000 BTU/h, which works out to 5275 watt of cooling capacity. The DC inverter control keeps the compressor turning at a variable speed instead of cutting fully on and off, so room temperature holds steadier once it settles.

This Daewoo 1.5 Ton Inverter AC draws 1702 watt of rated input power at 7.73 A and returns an EER of 3.10. The rotary compressor works with R32 refrigerant, and the indoor unit pulls out up to 2 kg of moisture per hour while moving air at 600/520/480/400/340 m³/h across its five fan steps.

Noise stays at 42 dB on the indoor unit and 50 dB on the outdoor unit. The indoor unit measures 920 × 320 × 230 mm and weighs 10 kg, while the single-layer condenser outdoor unit measures 810 × 290 × 530 mm and weighs 28 kg. This Daewoo 18000 BTU AC works over an operating temperature range of 16℃–43℃ and an ambient range of 16℃–48℃.

On features, this Daewoo DC Inverter Split AC carries Turbo, I Feel, four way swing, timer, gold fin coating, smart airflow, dual drainage, ECO mode, louver position memory, auto-restart, sleep mode and a healthy filter. A wall mount for the remote is supplied with the unit.

Highlights

• 1.5 Ton DC Inverter split type air conditioner
• 18000 BTU/h (5275 W) cooling capacity
• Rotary compressor running R32 refrigerant
• EER 3.10 at 1702 W rated input power and 7.73 A
• Indoor noise level 42 dB, outdoor unit 50 dB
• Indoor airflow 600/520/480/400/340 m³/h across five steps
• Moisture removal of 2 kg per hour
• Gold fin coated coil with single layer condenser
• Turbo, I Feel, ECO mode and sleep mode
• Four way swing with louver position memory
• Auto-restart, dual drainage and healthy filter
• Operating range 16℃–43℃, ambient range 16℃–48℃

Warranty Information

• Compressor: 10 Years
• Parts & Service: 02 Years

Important Usage Instructions

• Keep doors and windows shut while cooling and set the temperature around 24–26℃ so the inverter compressor can hold a low, steady speed.
• Wash the indoor air filter every two to three weeks; a blocked filter cuts airflow well below the rated 600 m³/h.
• Leave open space around the outdoor unit so the single-layer condenser can throw heat away freely.
• Run the unit within its 16℃–43℃ operating range and use a stable, dedicated power line for the 1702 W load.
• Leave gas top-up, drainage and PCB work to a trained technician, as R32 refrigerant needs proper handling.

Daewoo DSB-H189B1KLHI-T is available at LM Electronics with a 10 Years Compressor and 02 Years Parts & Service warranty. LM Electronics is the Official Dealer of Daewoo. Click here to see all Air Conditioners.
