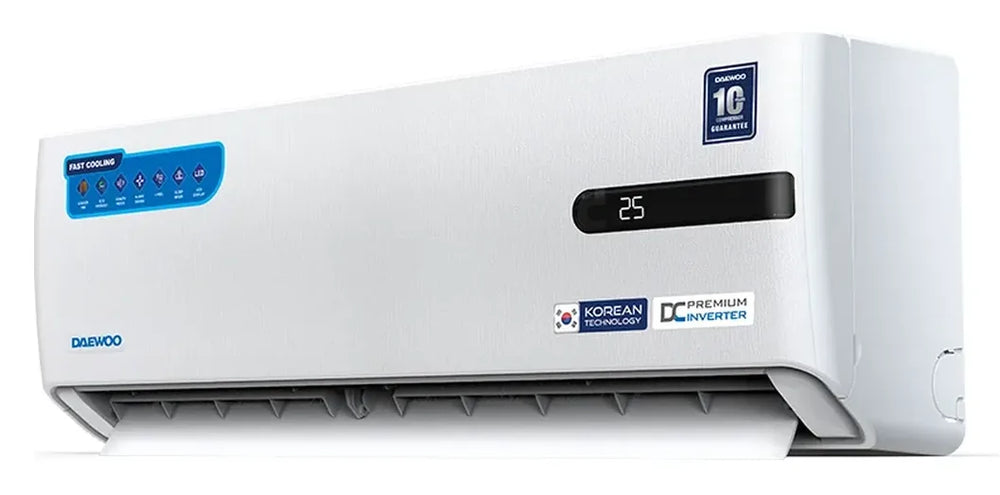

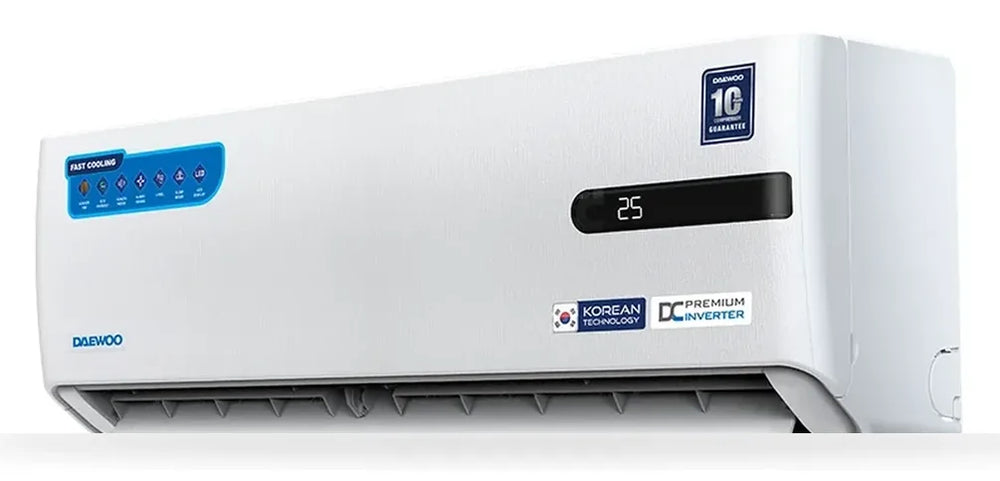

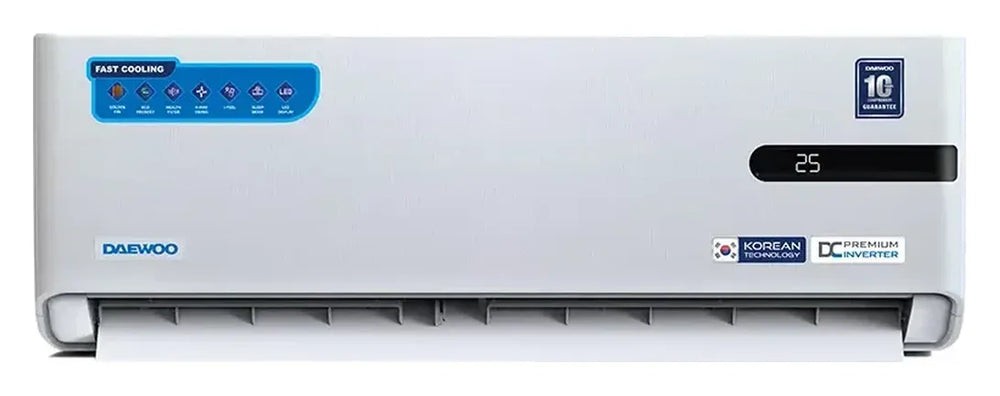

Daewoo 2 Ton DC Inverter Split Type AC

Daewoo 2 Ton DC Inverter Split Type AC (model DSB-H249B1KLHI-T) is a wall-mounted split air conditioner rated at 24000 BTU/h, which works out to 6600 watt of cooling capacity — the size class meant for larger rooms and open living spaces. Its DC inverter control varies compressor speed rather than switching fully on and off.

This Daewoo 2 Ton Inverter AC draws 2164 watt of rated input power at 9.84 A and returns an EER of 3.05. The rotary compressor runs on R32 refrigerant, and the indoor unit removes up to 2.6 kg of moisture per hour while moving air at 900/830/750/620/550 m³/h across its five fan steps.

Noise measures 43 dB at the indoor unit and 53 dB at the outdoor unit. The indoor unit is 1100 × 320 × 230 mm and weighs 14 kg, while the single-layer condenser outdoor unit is 860 × 322 × 655 mm and weighs 45 kg. This Daewoo 24000 BTU AC works over an operating temperature range of 16℃–43℃ and an ambient range of 16℃–48℃.

On features, this Daewoo 2 Ton Split Type AC carries Turbo, I Feel, four way swing, timer, gold fin coating, smart airflow, dual drainage, ECO mode, louver position memory, auto-restart, sleep mode and a healthy filter. A wall mount for the remote is supplied with the unit.

Highlights

• 2 Ton DC Inverter split type air conditioner
• 24000 BTU/h (6600 W) cooling capacity
• Rotary compressor running R32 refrigerant
• EER 3.05 at 2164 W rated input power and 9.84 A
• Indoor noise level 43 dB, outdoor unit 53 dB
• Indoor airflow 900/830/750/620/550 m³/h across five steps
• Moisture removal of 2.6 kg per hour
• Gold fin coated coil with single layer condenser
• Turbo, I Feel, ECO mode and sleep mode
• Four way swing with louver position memory
• Auto-restart, dual drainage and healthy filter
• Operating range 16℃–43℃, ambient range 16℃–48℃

Warranty Information

• Compressor: 10 Years
• Parts & Service: 02 Years

Important Usage Instructions

• Keep doors and windows shut while cooling and hold the setting near 24–26℃ so the inverter compressor can settle at a low speed.
• Wash the indoor air filter every two to three weeks; a clogged filter drops airflow far below the rated 900 m³/h.
• Mount the 45 kg outdoor unit on a firm bracket or slab with clear space around the condenser for heat to escape.
• Run the unit within its 16℃–43℃ operating range and give the 2164 W load a dedicated, stable power line.
• Leave gas top-up, drainage and PCB work to a trained technician, as R32 refrigerant needs proper handling.

Daewoo DSB-H249B1KLHI-T Availability

With a 10 Years Compressor and 02 Years Parts & Service warranty, the Daewoo DSB-H249B1KLHI-T is available at LM Electronics. LM Electronics is an Official Dealer of Daewoo. Click here to view all Air Conditioners.
