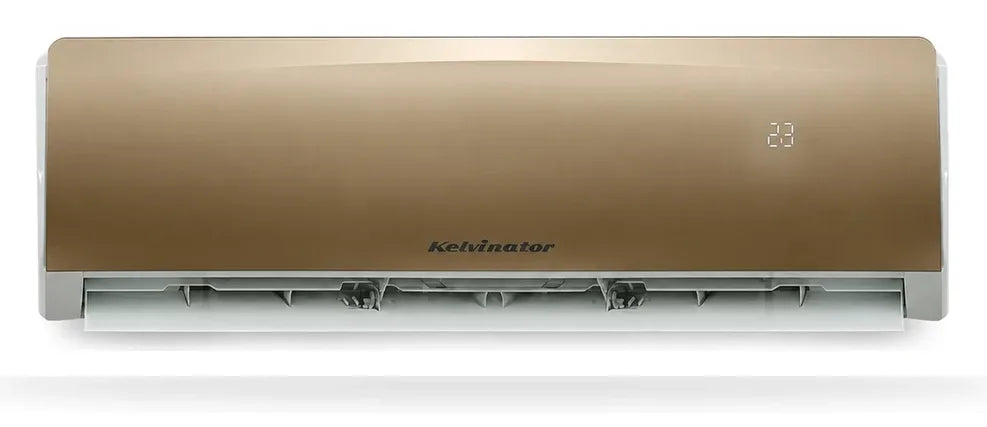

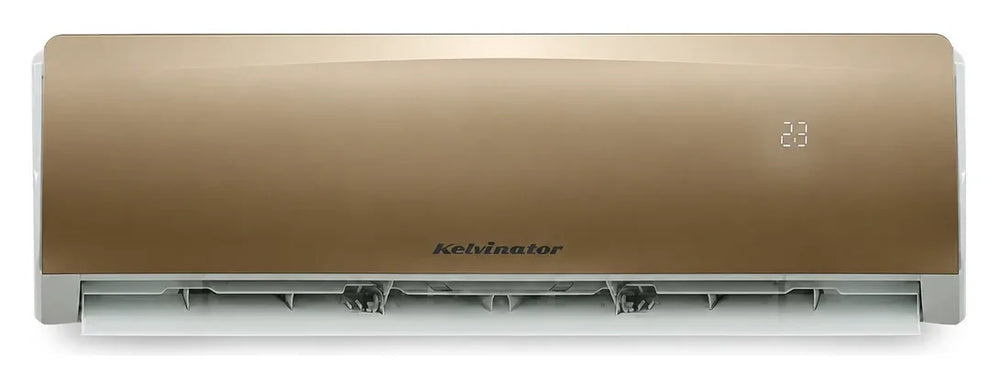

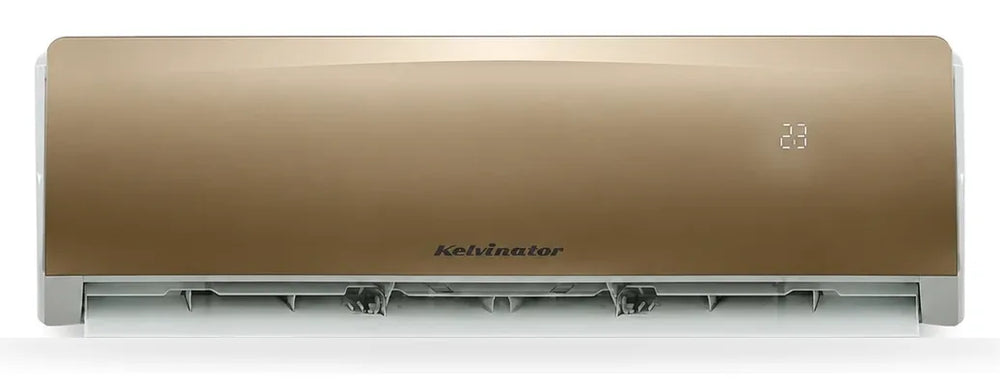

Kelvinator 02 Ton Golden Inverter AC Golden

Kelvinator 02 Ton Golden Inverter AC Golden (model KSV-24BDINV Golden) is a cooling-only split type inverter air conditioner with a rated cooling capacity of 7034 watt. The maker rates this capacity for roughly 180–240 square feet, which puts it in a large bedroom or a mid-sized drawing room.

This Kelvinator 2 Ton Inverter AC runs on a 230V single phase, 50Hz supply and holds a withstanding voltage range of 130V–280V at 50Hz — a useful margin where mains voltage swings. Rated power is 2085 watt at 9.13 A cooling input current, giving an EER of 3.37 W/W, while maximum input power is 2800 watt at 17.6 A.

The indoor side of this Kelvinator Golden Inverter AC moves 970 m³/h of air at a rated noise level of 45.7 dB(A), with the fan turning at 1050 r/min. Inside sits a Wolong ZWA138D71B BLDC motor with 45 watt mechanical output and a thermal protector. The indoor unit measures 1097 × 329 × 258 mm and weighs 15.5±0.5 kg net, 17±0.5 kg gross.

Being a Kelvinator Split Type Inverter AC, the compressor varies its speed with the cooling load instead of cycling fully on and off. The outdoor unit is rated to work in ambient conditions of 20–46℃. Note that this model is cooling only, so it has no heating mode.

Highlights

• 02 Ton class split type inverter air conditioner, cooling only
• Rated cooling capacity 7034 W
• Rated power 2085 W at 9.13 A cooling input current
• EER 3.37 W/W
• Maximum input power 2800 W, maximum current 17.6 A
• Rated supply 230V single phase, 50Hz
• Withstanding voltage range 130V–280V, 50Hz
• Indoor airflow 970 m³/h with 1050 r/min fan speed
• Indoor noise level 45.7 dB(A)
• Wolong ZWA138D71B BLDC motor with 45 W output
• Thermal protector fitted
• Indoor unit 1097 × 329 × 258 mm, 15.5±0.5 kg net

Warranty Information

• Compressor: 10 Years
• Parts & Service: 01 Year

Important Usage Instructions

• Match the unit to the room — the rated 7034 W capacity is meant for about 180–240 square feet, so a much larger room will keep the compressor at full speed.
• Wash the indoor filter every two to three weeks; a blocked filter pulls airflow below the rated 970 m³/h and raises running current.
• The supply may sit anywhere in the 130V–280V withstanding range, but keep the circuit rated for the 17.6 A maximum current.
• Keep the outdoor unit in open air within its 20–46℃ ambient rating and clear of walls that trap hot discharge.
• This is a cooling-only model, so use it for cooling and dehumidification and leave gas, drainage and PCB work to a trained technician.
