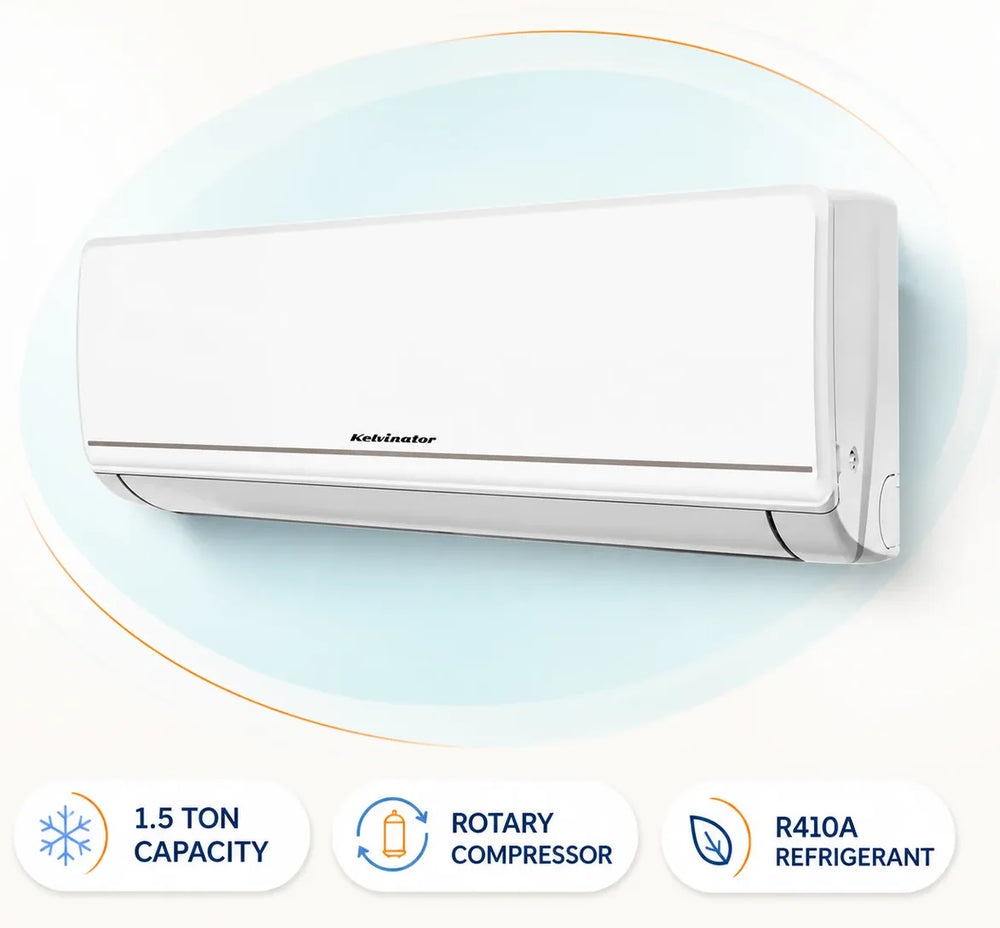

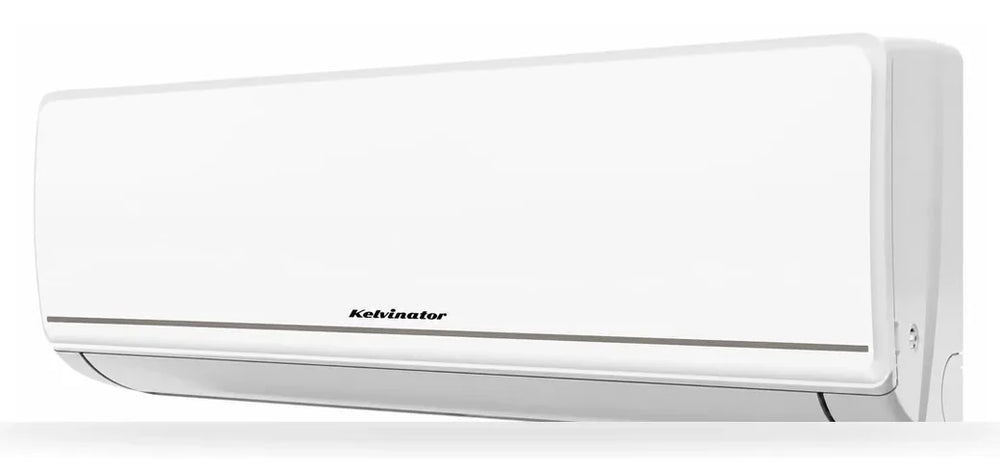

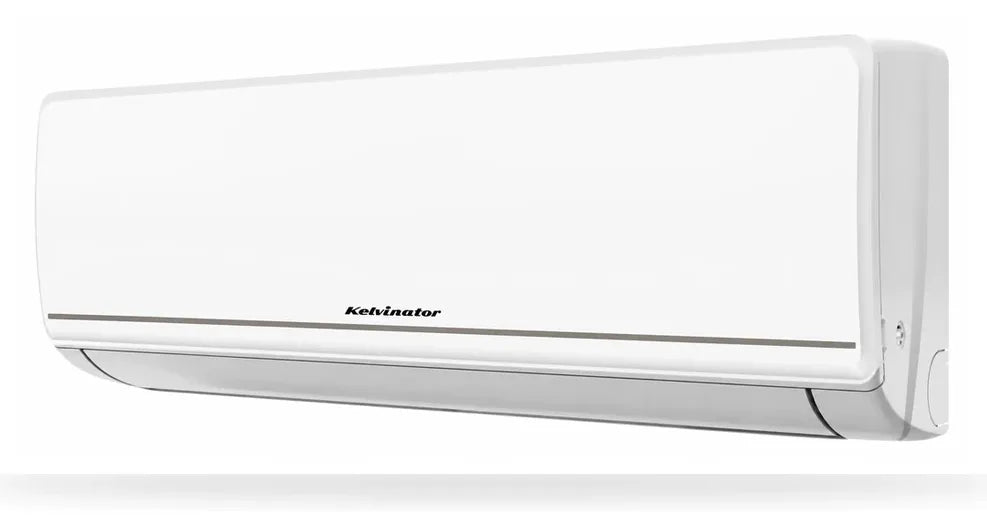

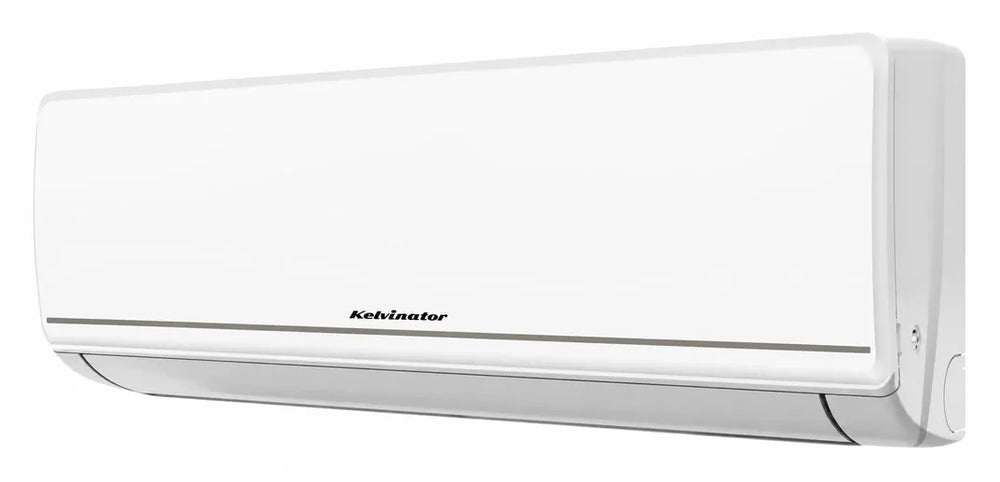

Kelvinator 1.5 Ton Rotary Compressor Split Type AC

Kelvinator 1.5 Ton Rotary Compressor Split Type AC (model KSV-18NVBD-FC) is a split air conditioner designed for medium to large rooms, drawing rooms, or office spaces. Its cooling capacity is 18000 BTU/h, which is equivalent to 5200 watts.

This unit uses a rotary compressor and is charged with R410A refrigerant. Power input is 1690 watts, rated current is 7.8 amperes, maximum input consumption is 2500 watts, and maximum current is 11.6 amperes. Rated power supply is 1 phase, 220-240 volts, 50 hertz.

Even with fluctuations in electrical voltage, it can operate within a workable power supply range of 165 to 260 volts at 50 hertz. The indoor coil features hydrophilic fins and φ7 millimeter inner grooved tubing, while the outdoor coil uses golden and hydrophilic fins, which help the coil withstand outdoor weather. The condenser is available in both single and double layer types.

Kelvinator KSV-18NVBD-FC Price in Bangladesh should be checked considering tonnage, BTU, compressor type, refrigerant, and voltage range. The indoor unit measures 910 × 295 × 205 millimeters, and the outdoor unit measures 800 × 305 × 550 millimeters. The compressor comes with a 5-year warranty.

Features

• Split type air conditioner, cooling capacity 18000 BTU/h (1.5 Ton)
• Cooling capacity 5200 watts
• Rotary compressor
• R410A refrigerant
• Power input 1690 watts
• Rated current 7.8A, maximum current 11.6A
• Maximum input consumption 2500 watts
• Rated power supply 1 phase / 220-240V / 50Hz
• Workable power supply 165-260V, 50Hz
• Indoor coil with hydrophilic fins and φ7mm inner grooved tubing
• Outdoor coil with golden and hydrophilic fins
• Indoor unit 910 × 295 × 205 mm, outdoor unit 800 × 305 × 550 mm

Warranty Information

• Compressor: 5 Years
• Parts and Service: 1 Year

Important Usage Instructions

• Match the room to the capacity: 18000 BTU/h suits a larger bedroom or drawing room rather than a small cabin.
• Clean the indoor filters every two to three weeks so the hydrophilic coil stays free of dust.
• Mount the outdoor unit in an open, shaded spot with clear space on all sides for heat to escape.
• Wait a few minutes before restarting after switching off, so the rotary compressor pressure settles.
• Let an authorised technician handle installation, R410A gas charging and yearly servicing.

Where to Buy Kelvinator KSV-18NVBD-FC?

With a 5-year compressor warranty and 1-year parts and service warranty, you can find the Kelvinator KSV-18NVBD-FC at LM Electronics. LM Electronics is the Official Dealer of Kelvinator. Click here to view all Air Conditioners.
