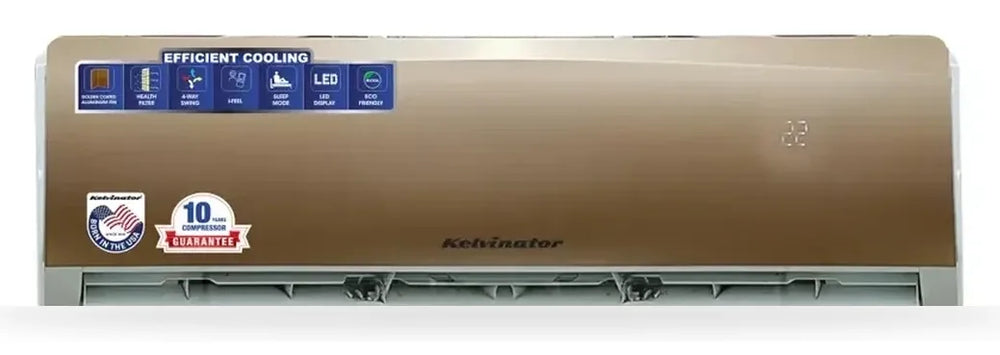

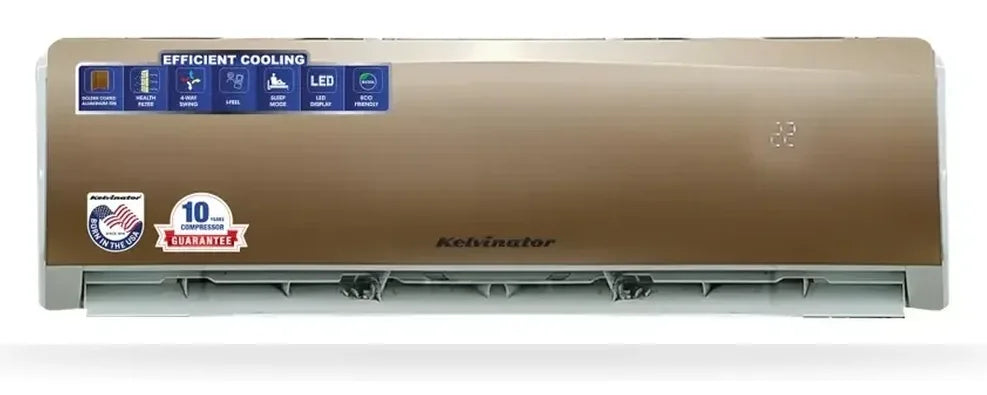

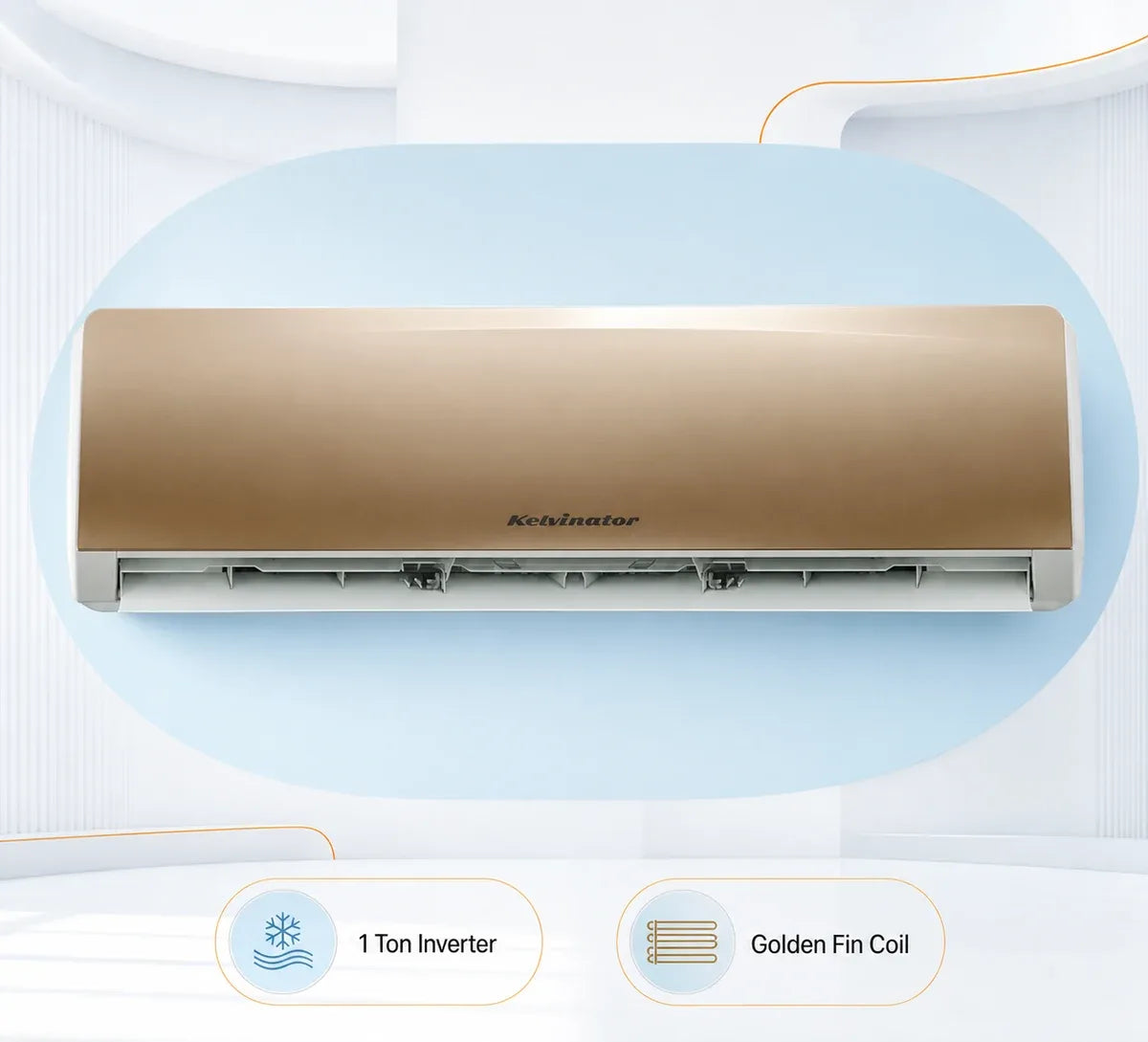

Kelvinator 1 Ton Golden Inverter AC

Kelvinator 1 TON GOLDEN INVERTER AC (model KSV-12BDINV GOLDEN) is a cooling-only split type inverter air conditioner with a rated cooling capacity of 3517 watt. The maker rates that capacity for roughly 90–120 square feet, which covers an ordinary bedroom or a small office room.

This Kelvinator 1 Ton Inverter AC runs on a 230V single phase, 50Hz supply and carries a withstanding voltage range of 130V–280V at 50Hz. Rated power is 1120 watt at 4.86 A cooling input current, giving an EER of 3.14 W/W, while maximum input power is 1380 watt at 7 A. Because it is an inverter model, the compressor changes speed with the load instead of switching fully on and off.

On the indoor side this Kelvinator 1 Ton Golden AC moves 570 m³/h of air at a rated noise level of 43.5 dB(A), with the fan running at 1200 r/min. It uses a Wolong YYW25-4-5201L single phase induction motor with 25 W mechanical output, a 1.5 uF capacitor and a thermal protector. The indoor unit measures 832 × 292 × 210 mm and weighs 10.7±0.5 kg net, 12.85±0.5 kg gross.

As a Kelvinator Cooling Only Inverter AC it has no heating mode, and the outdoor unit is rated to work in ambient conditions of 20–46℃. For a single room where the AC runs for long hours, the lower steady-state draw of inverter operation is the main practical gain over a fixed-speed unit.

Highlights

• 1 Ton class split type inverter air conditioner, cooling only
• Rated cooling capacity 3517 W
• Rated power 1120 W at 4.86 A cooling input current
• EER 3.14 W/W
• Maximum input power 1380 W, maximum current 7 A
• Rated supply 230V single phase, 50Hz
• Withstanding voltage range 130V–280V, 50Hz
• Indoor airflow 570 m³/h with 1200 r/min fan speed
• Indoor noise level 43.5 dB(A)
• Wolong YYW25-4-5201L motor, 25 W output, 1.5 uF capacitor
• Thermal protector fitted
• Indoor unit 832 × 292 × 210 mm, 10.7±0.5 kg net

Warranty Information

• Compressor: 10 Years
• Parts & Service: 01 Year

Important Usage Instructions

• Keep the room within the rated 90–120 square feet range so the 3517 W capacity can hold temperature at low compressor speed.
• Clean the indoor filter every two to three weeks; a blocked filter drags airflow below the rated 570 m³/h.
• The unit tolerates 130V–280V, but wire it on a circuit sized for the 7 A maximum input current.
• Give the outdoor unit open air and keep it inside its 20–46℃ ambient rating.
• This is a cooling-only model; leave refrigerant charging, drainage and PCB work to a trained technician.

Where to Buy Kelvinator KSV-12BDINV Golden?

10 Years Compressor and 01 Year Parts & Service warranty included with Kelvinator KSV-12BDINV Golden available at LM Electronics. LM Electronics is the Official Dealer of Kelvinator. Click here to see all Air Conditioners.
