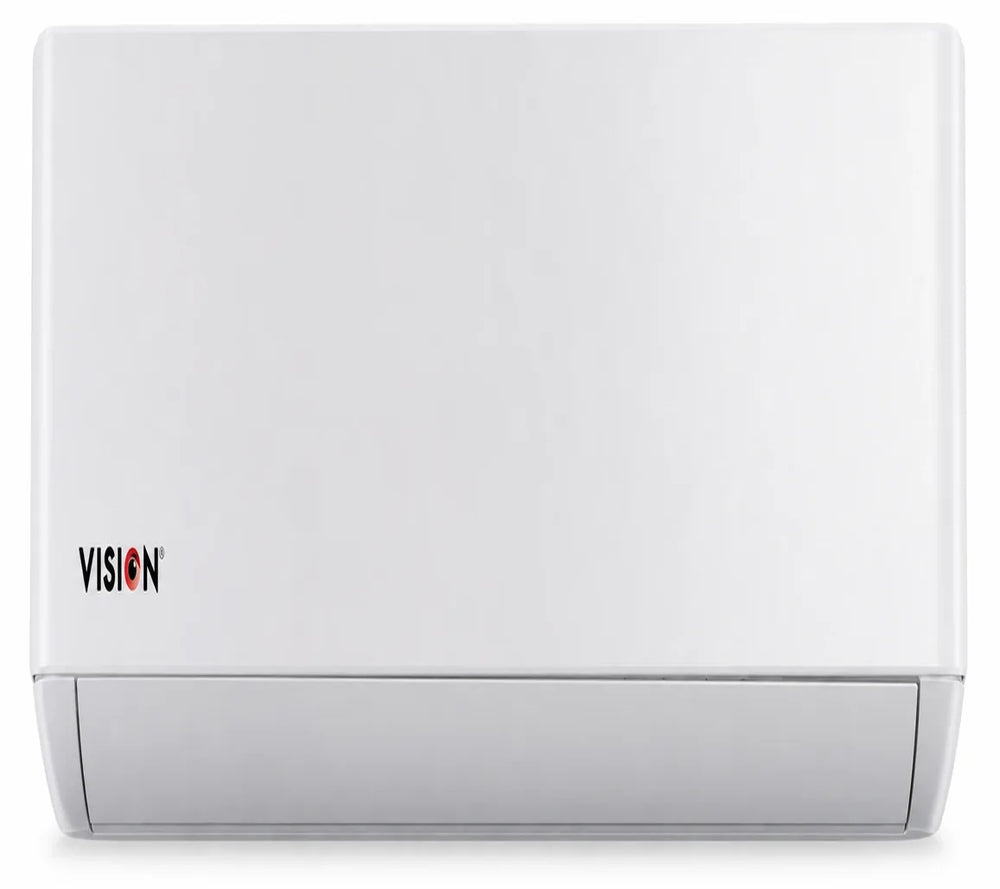

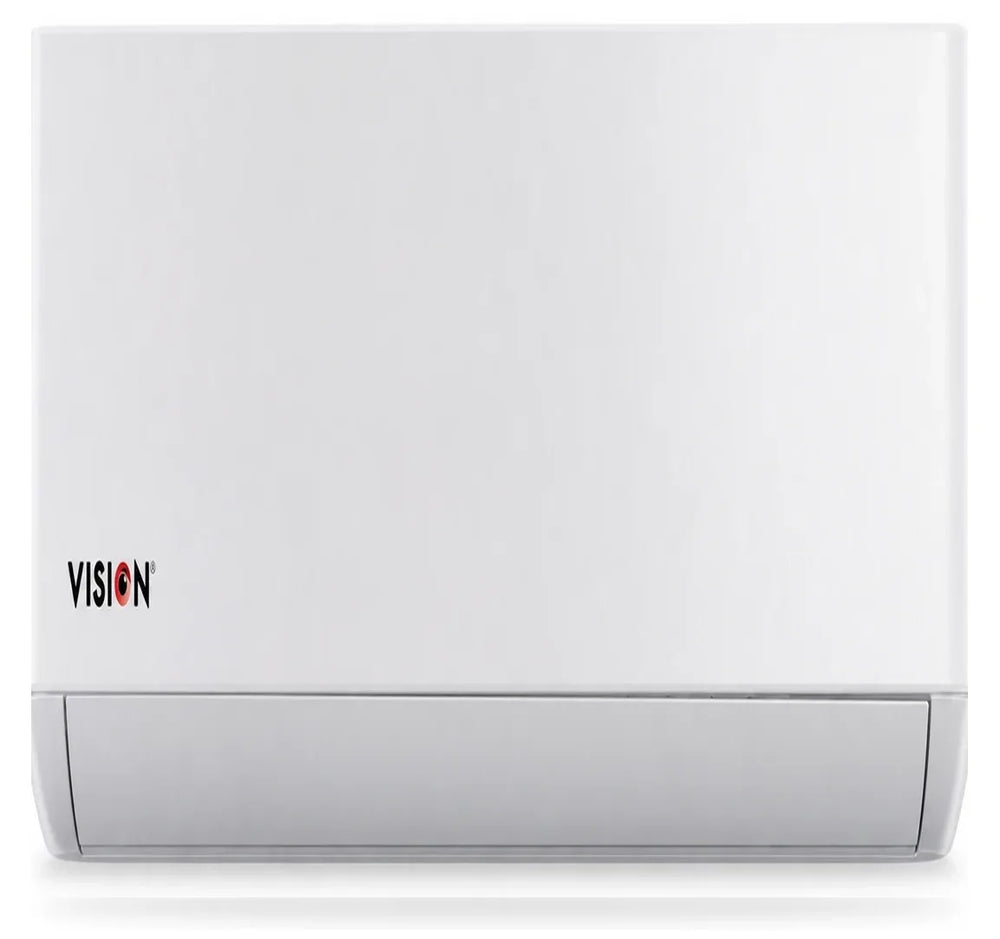

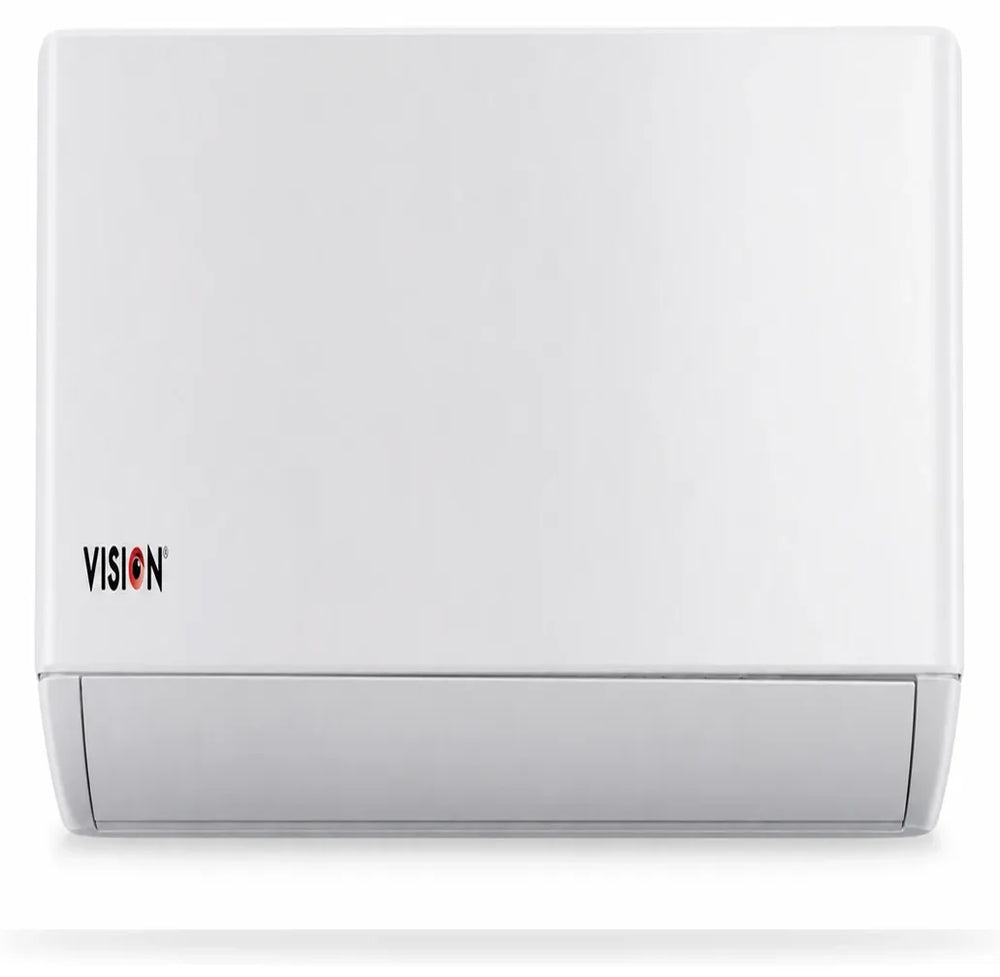

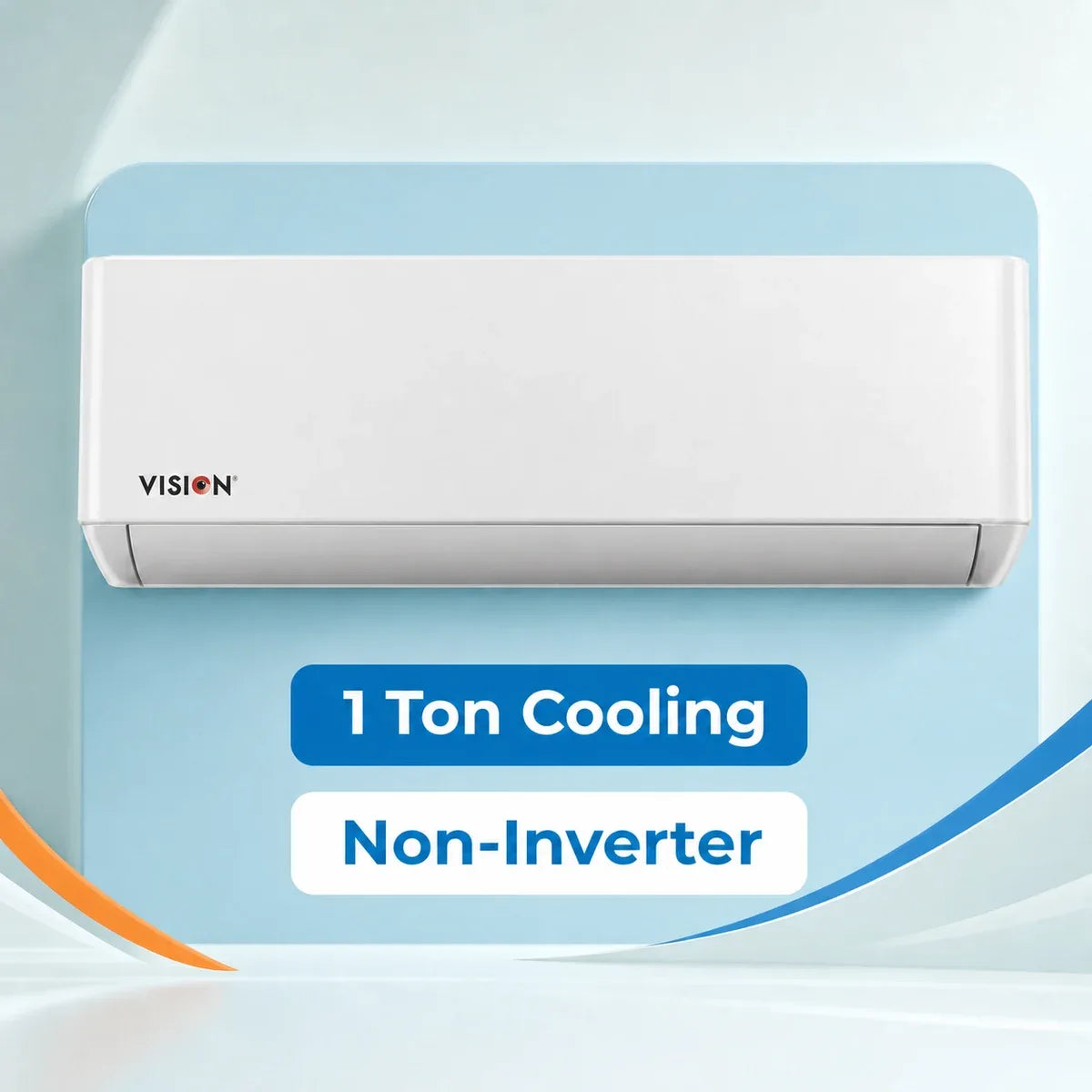

Vision 1 Ton AC Split Type Non-Inverter -VSN-12K410 Eco

Vision 1 Ton AC Split Type Non-Inverter -VSN-12K410 Eco is a wall-mounted split air conditioner with a 1.0 ton cooling capacity, rated at 12000 BTU/h. That output suits a single bedroom or a small office room. It works on an on-off cycle, so the compressor stops once the set temperature is reached and restarts when the room warms up again.

Cooling comes from a GMCC rotary compressor charged with R410a refrigerant, paired with a copper tube condenser coil that releases heat efficiently and is straightforward to service. This Vision 1 Ton Non-Inverter AC draws 1095W of power at 5.1A and 50 Hz, and it keeps running across a 198V-242V voltage range.

The indoor unit runs at just 43 dB while the outdoor unit measures 53 dB, which keeps night-time operation comfortable. The Vision VSN-12K410 Eco adds 3D air flow, a hidden display, a dust filter, a sleep mode timer and a remote control. Wi-Fi control is not available on this model.

For installation planning, the indoor unit packs at 860×345×265 mm with a 7 kg net weight, and the outdoor unit at 858×356×585 mm with a 29 kg net weight. Anyone comparing a Vision 12000 BTU Split AC should weigh BTU rating, compressor brand, coil material and noise level rather than styling alone.

Highlights

• 1.0 ton cooling capacity, 12000 BTU/h
• Split type, on-off (non-inverter) operation
• GMCC rotary compressor
• R410a refrigerant
• Copper tube condenser coil
• 1095W power input, 5.1A current, 50 Hz
• 198V-242V operating voltage range
• 43 dB indoor noise, 53 dB outdoor noise
• 3D air flow with hidden display
• Dust filter and sleep mode timer
• Remote control included
• 7 kg indoor net weight, 29 kg outdoor net weight

Warranty Information

• Compressor: 5 Years
• Spare Parts / PCB: 4 Years
• After Sales Service: 4 Years
• Cleaning Service: 1 Year

Important Usage Instructions

• Have the indoor and outdoor units installed by a trained technician, keeping the outdoor unit in a shaded, well-ventilated spot.
• Keep doors and windows closed while the air conditioner runs so the 12000 BTU/h capacity is not wasted.
• Clean the dust filter every two to three weeks; a clogged filter cuts airflow and raises power use.
• Use the sleep mode timer at night instead of leaving the unit on the lowest setting all through.
• Switch the unit off at the breaker during long absences or thunderstorms, and wait a few minutes before restarting after a shutdown.

Official warranty-supported Vision VSN-12K410 Eco 1 Ton AC is available at LM Electronics. LM Electronics is an Official Dealer of Vision. Click to view all Air Conditioners.
