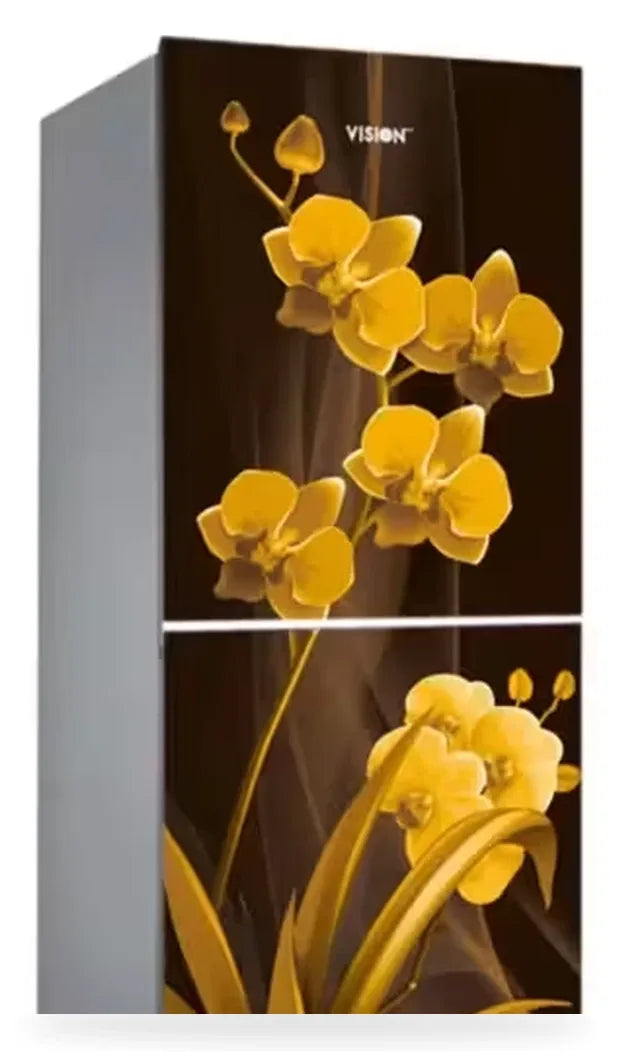

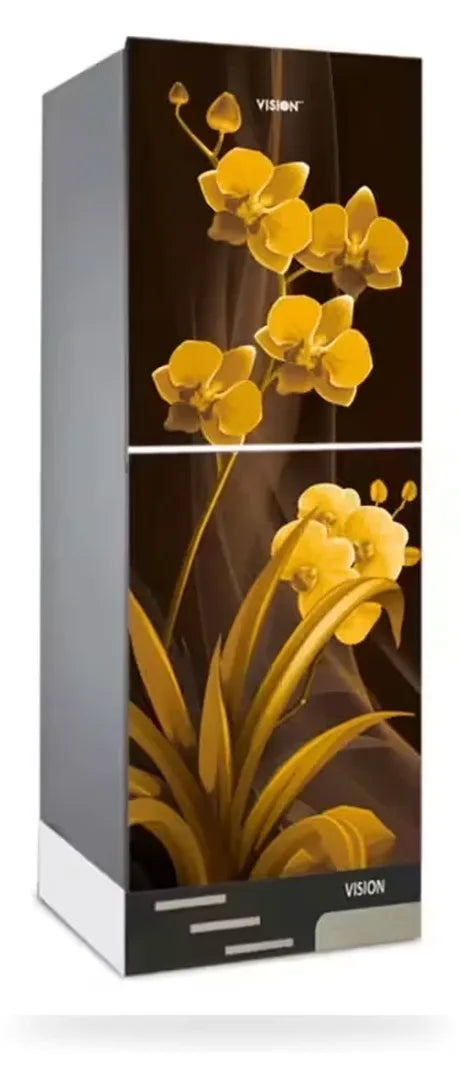

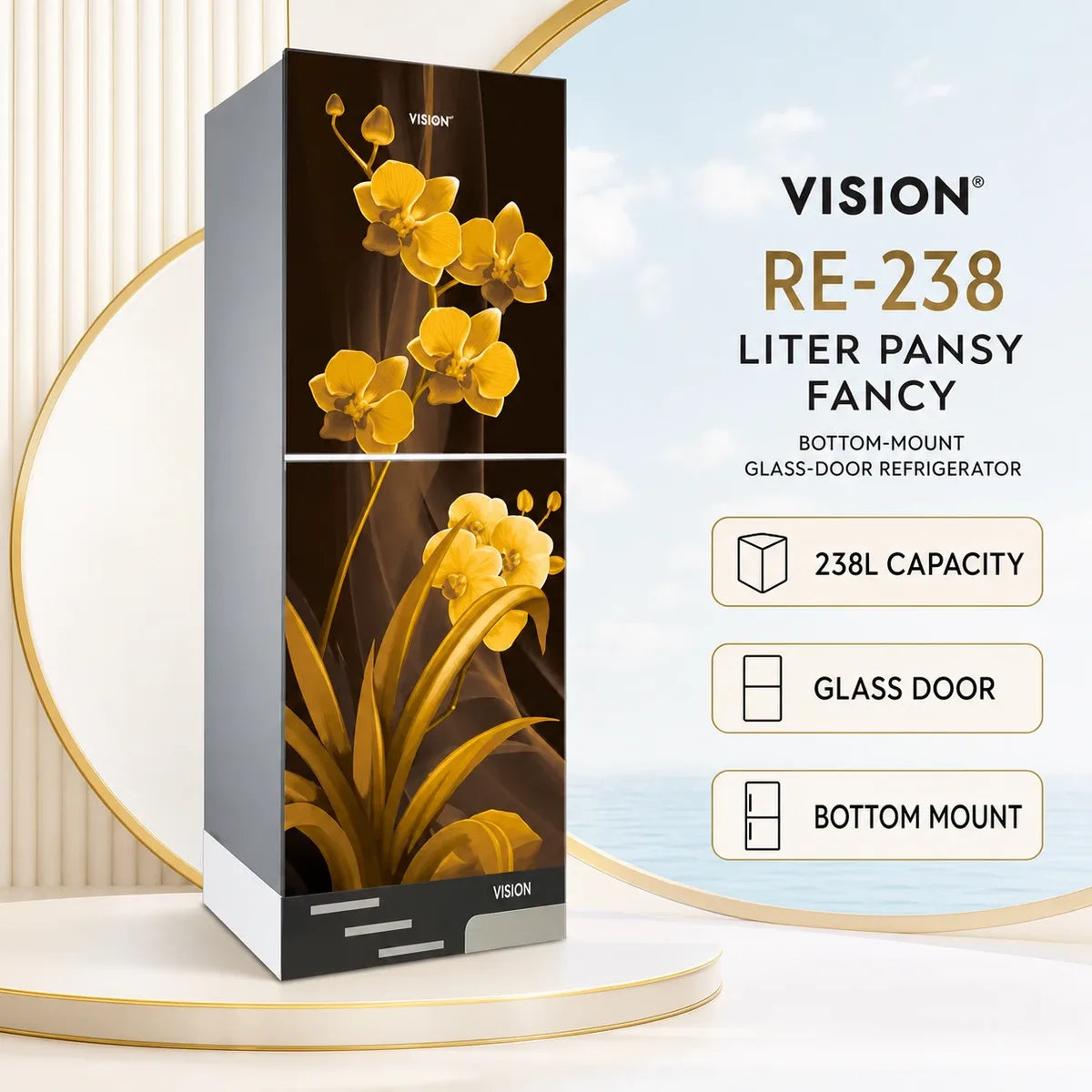

Vision Glass Door Refrigerator RE-238 Liter Pansy Fancy Bottom Mount

VISION Glass Door Refrigerator RE-238 Liter Pansy Fancy Bottom Mount is a bottom-mount direct cool refrigerator, which in daily use means the freezer sits low and the fresh-food chiller sits at eye level — the compartment a household opens ten times a day is the one that needs no bending. Net volume is 238 litres out of a 246-litre gross.

The cooling is split the way a kitchen actually works. The freezer cabinet holds below -18°C for fish, meat and ice, while the upper section stays between 0°C and 6°C for cooked food, vegetables and drinks. Temperature is set on a mechanical dial, defrosting is manual, and an interior LED light shows the shelves without the door having to swing wide open.

The door is what separates this Vision Glass Door Refrigerator from a plain steel-front cabinet: the Pansy Fancy design sits on the glass front and wipes clean with a damp cloth. An antibacterial gasket seals the door shut. Listed as model Vision VIS-238 GD, the cabinet measures 577 × 590 × 1692 mm (W × D × H) and weighs 62.40 kg net against 67.83 kg gross.

Running conditions are the practical test for a Vision Bottom Mount Refrigerator of this size. Input power is 89 to 95 watts, and the unit is rated to keep working across a wide 160–260V, 50Hz supply, which counts for a lot where mains voltage swings through the evening. Insulation foam is quoted at 35–37 kg/m³ density, the refrigerant carries an ODP of 0, and the compressor is backed by a 12-year warranty.

Highlights

• 238-litre net volume and 246-litre gross volume
• Bottom-mount layout with the freezer below and the chiller above
• Direct cool cooling technology
• Freezer cabinet below -18°C
• Upper compartment held between 0°C and 6°C
• Mechanical temperature control with manual defrosting
• Glass door carrying the Pansy Fancy design
• Interior LED light
• Antibacterial door gasket
• 89–95W input power on a 160–260V, 50Hz supply
• 35–37 kg/m³ foaming density and ODP of 0
• 577 × 590 × 1692 mm cabinet, 62.40 kg net weight
• 12-year compressor warranty

Warranty Information

12 Years Compressor Warranty

Important Usage Instructions

• Stand the refrigerator upright and leave it switched off for a few hours after delivery before plugging it in.
• Keep clearance behind and at both sides so heat can escape, and keep the cabinet out of direct sunlight.
• Let hot food cool to room temperature before putting it inside, otherwise the compressor runs far longer than it needs to.
• Defrost the freezer manually once frost builds up, and never chip the ice away with a knife or any sharp tool.
• Wipe the glass door and the door gasket with a damp cloth, and unplug the unit before any deep cleaning.
